Description
- The unit is intended to be an aid to attendants or carers whilst pushing a wheelchair user. It is not designed as an accessory to enable a manual wheelchair perform as a power wheelchair.
- Twin drive wheels for greater traction. Dismantles easily for easy transportation and storage.
- Easy to operate hand control lever. Variable speed setting with reverse.
- Removable battery pack for remote charging. Lifts out of use to enable normal wheelchair function.
- The listed price is VAT exempt. We just require a short message with the name and medical condition of the user to qualify for this price.
Product description

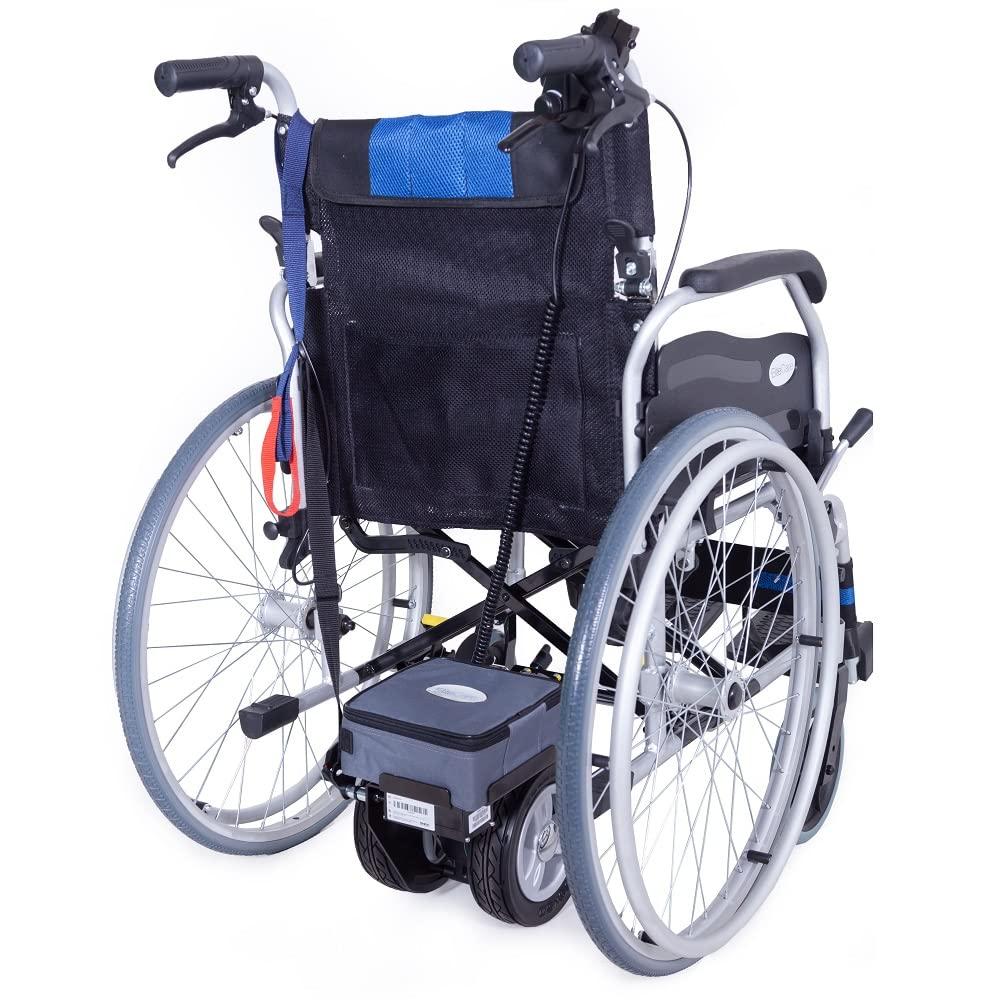

Turn your manual wheelchair into a carer controlled electric assisted wheelchair with the wheelchair powerpack, complete with variable speed and reverse. Also easily removable when not needed. Please note: This powerpack is quite heavy, but it has to be to achieve greater traction with the ground.
When fully fitted your wheelchair will not fold up but by using the quick release mechanism the powerpack can be removed and the wheelchair folded in seconds. Fits most wheelchairs with horizontal tubing going along the bottom at each side of the wheelchair.
Twin drive wheels for greater traction
Variable speed setting with reverse option
Dismantles easily for transportation and storage
Removable battery pack for remote charging. Charger included
Fits most wheelchairs with horizontal tubing from front to back
Spacers included to accommodate different size tubing
Lifts out of use to resume normal wheelchair function
12 Months Warranty on main unit. 6 Months on Battery
Battery Weight: 6kg / 13lbs
Battery Size: 1 x 12V 20Ah Sealed Lead Acid
Battery Charger: 3ah 12v Output
Speed and Range
Maximum Drive Speed: 5km/hh
Maximum Range: 16km
Maximum Gradient: 6 Degrees
Fits Wheelchair Seat Widths
Fits Wheelchair Seat Widths: 36cm to 51cm / 14" to 20"
Drive Wheels: 2 x 200mm
Motor: 12v 100w 4100RPM
Weight Capacity: 115kg / 18 stone including wheelchair and user
Battery Pack: 6kg / 13lbs
Total Weight: 14kg / 30lbs
Will fit Elite Care models ECTR01, ECTR07, ECTR02 and ECSP01. Will not fit models with oval or square shaped tubing on the frame Will not fit travel wheelchairs in a bag such as ECTR04 or ECTR05.
Directions
Fits most wheelchairs with horizontal tubing going along the bottom at each side of the wheelchair. Slide the powerpack onto the tubing and secure it using the quick release strap. Operate the hand control lever to adjust the speed and direction of the wheelchair. Remove the battery pack for remote charging when necessary.
