Description

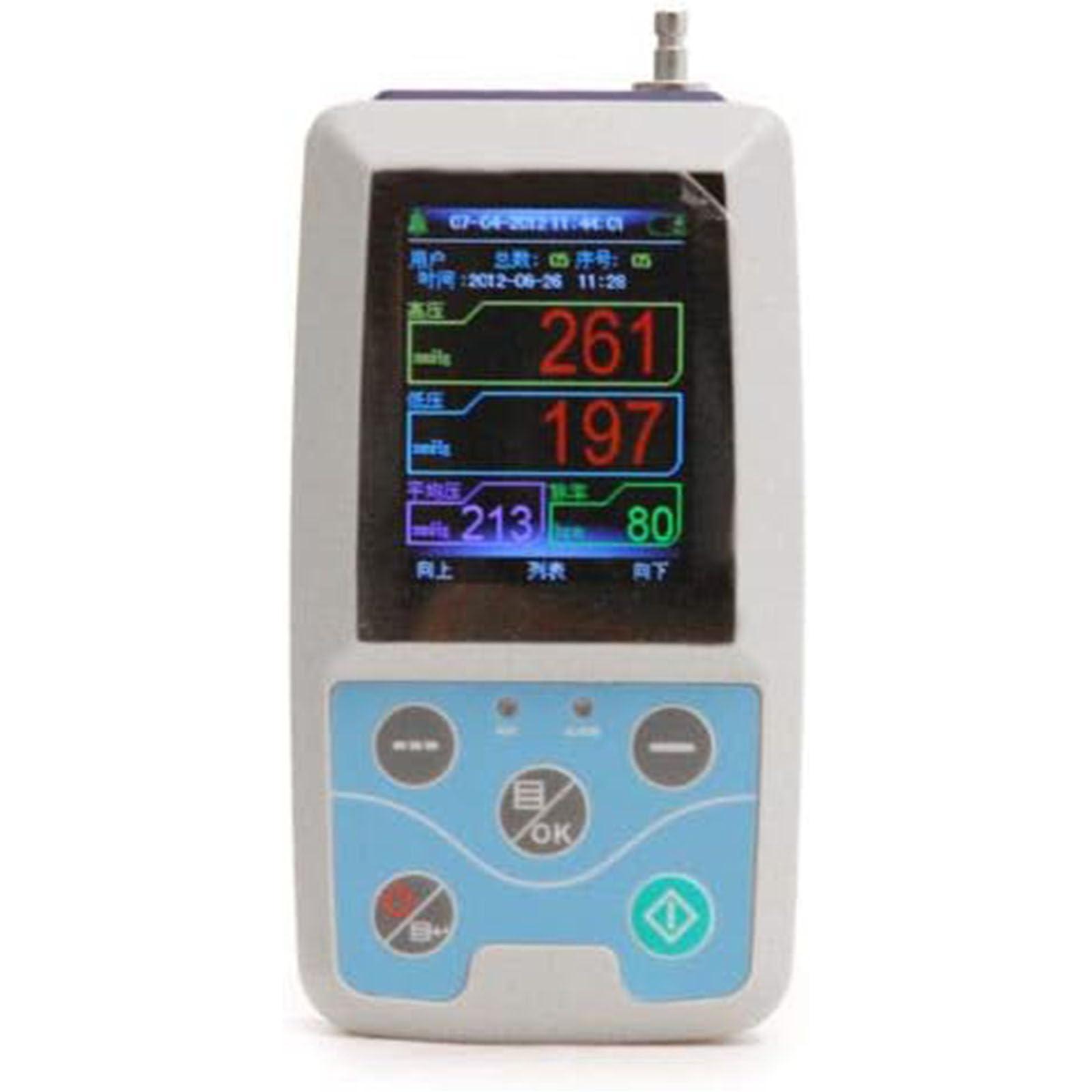

- High-definition color TFT display, strong visibilityCompact and portable,friendly interface, easy to use.
- 24 hours ambulatory NIBP measure function,at best 358 pieces of ambulatory NIBP measure data can be recorded once.
- Automatic measure and manual measure of the perfect combination,at best 300 pieces of NIBP measure data can be recorded once by manual measure.
- Patient range: adult, pediatric, neonatal.
- If you have any questions about this product, you can always contact us.
Software features:

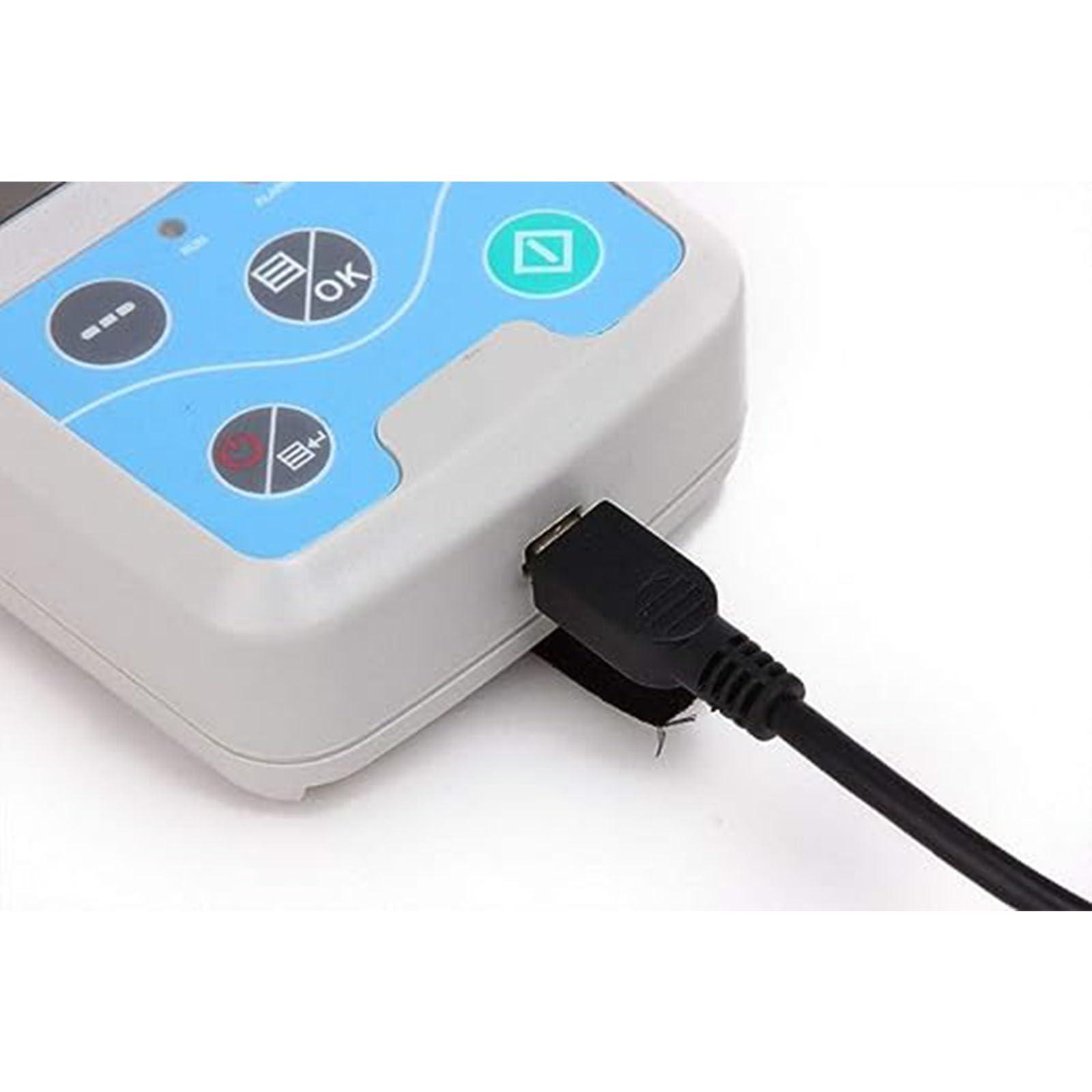

1)Connect to the device by USB interface.
2)Download measure result from the terminal device.
3)Display of scoop-shape trend graph, filling-type trend graph, histogram, pie chart, correlation line graph.
4)Edit every piece of data, and add annotation to it.
5)Edit basic information, doctor's advice, status instruction, current medicine-taken information, etc.
6)Support report printing and print preview.
Performance
:
Measure Method: Oscillometry
Measure Mode: The upper arm measure
Automatic Measure Interval: 15, 30, 60, 120, 240 minutes
Measure range: Pressure:0kPa (0mmHg)~38.67kPa (290mmHg)
Resolution: 1mmHg
Accuracy: 3mmHg
Alarm parameter: SYS, DIA
Inflation: automatic inflation by force pump
Deflation: automatic multistep deflation
PR:
Measure range: 40bpm~240bpm
Resolution:1bpm
Safety:
Power supply: DC 3V (21.5V AA alkaline dry battery)
Safety type: internally powered device, type BF applied part with defibrillation protection

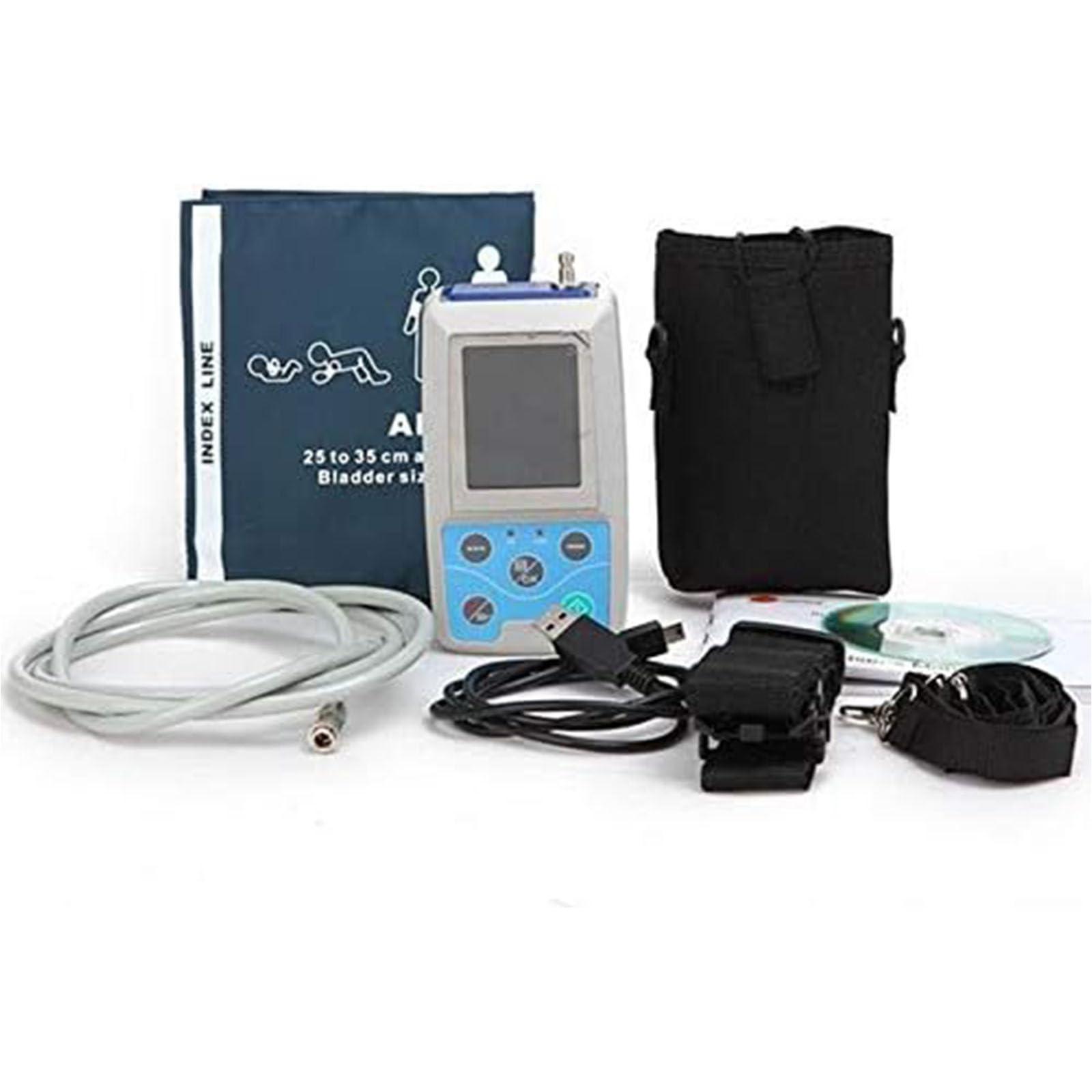

Accessories

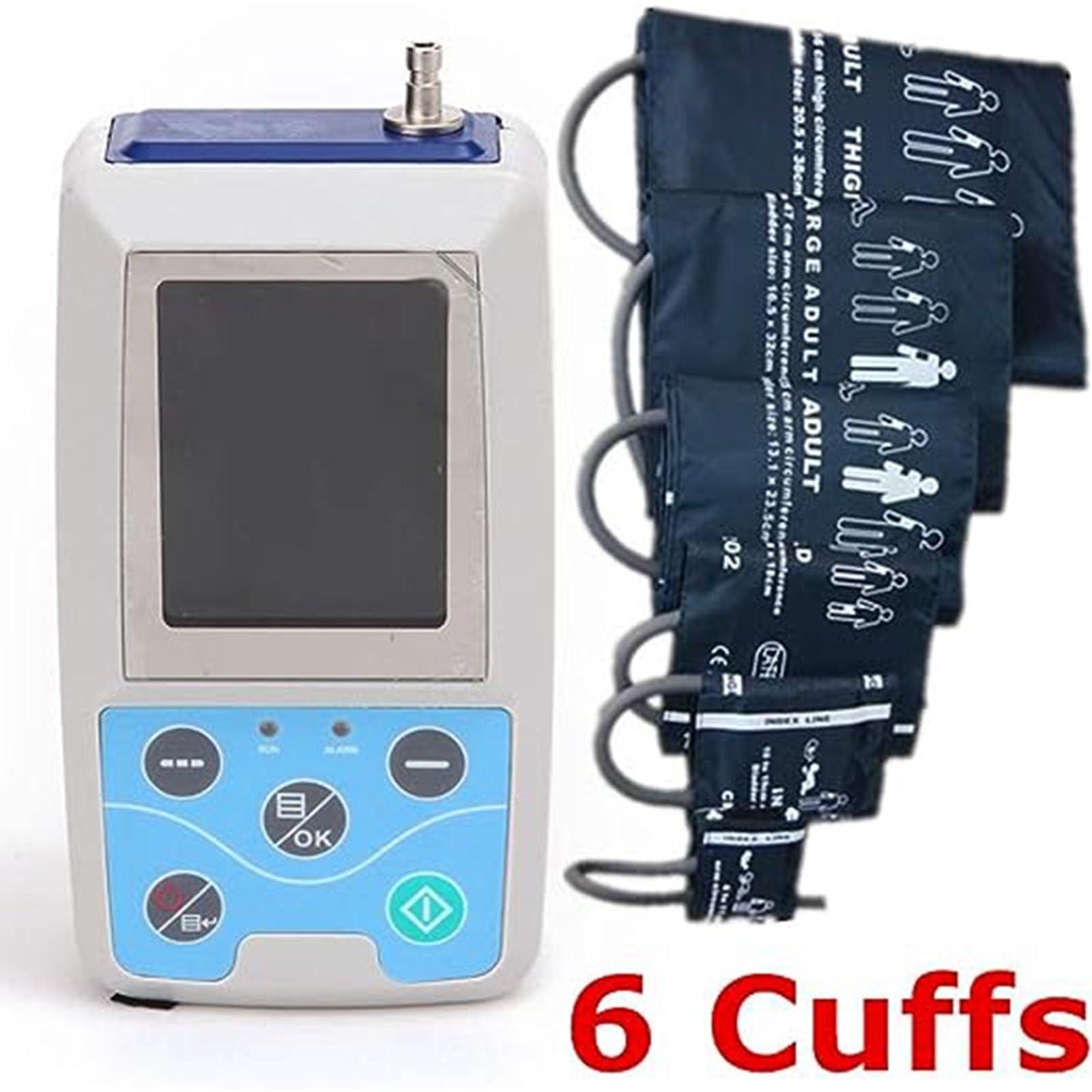

Cuff (Adult Cuff, Adult large Cuff, Child Cuff )
CD (PC software) 1pc
User manual 1pc
USB data line 1pc
Pack 1pc
Operational environment
Temperature: 5C~40C
Relative humidity: 15%~80%
Atmospheric pressure: 700hPa~1060hPa
