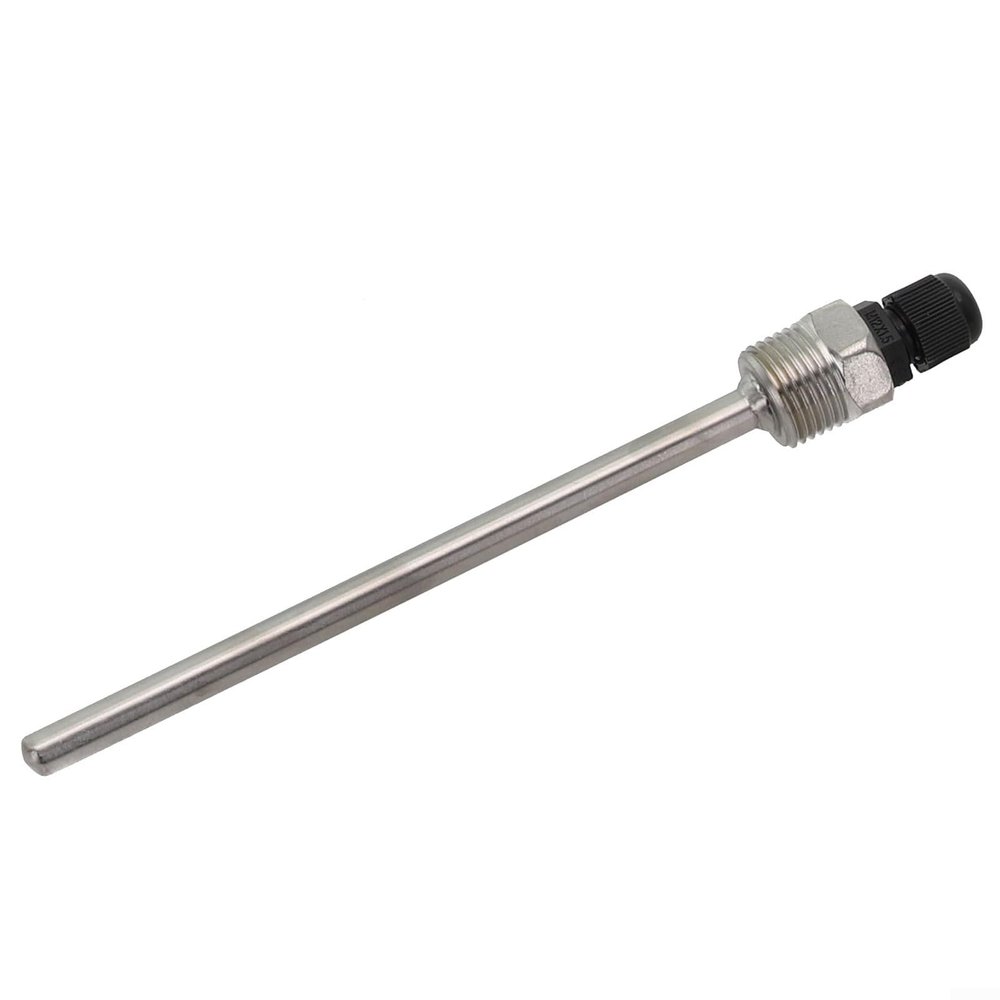

30200mm Thermowell Made Of 304 Stainless Steel With G12 Thread Compatible For Sensor Diameter Under 6mm And Max Pressure 2Mpa(150mm)

Description

• [RELIABLE PROTECTION FOR SENSORS] The quick fit design of this thermowell safeguards your thermometer from potential damage during use.
• [ MATERIALS] Made with SUS304 stainless steel, it provides excellent resistance to and wear over time.
• [EASY INSTALLATION] The thermowell features a G1/2 male pipe thread for straightforward connection to existing systems, making setup efficient.
• [HIGH TEMPERATURE RESISTANCE] With a maximum temperature tolerance of 250 degrees for CELSIUS, it is for high-heat applications in various industries.
• [SIZING REMINDER] Check that your sensor line diameter does not exceed 6mm; available lengths include 30mm, 50mm, 100mm, 150mm, and 200mm.

Features:
*Made of materials,
*, and long service life
*No bubbles, no pinhole and other blemishes
*The inlet accepts 1/2 inch male pipe thread
*A quick fit thermowell protects your thermometer from possible damage

Specifications:
Thread:for BSP(G) Type 1/2" DN15
inner diameter: 6mm
outer diameter: 8mm
sensor line with a diameter of under 6mm can be installed
Max Temperature:250 celsius
Max Pressure:2Mpa
Tube length (L)):30mm / 50mm / 100mm / 150mm / 200mm
Material: SUS304
Max Temperature of Nylon part: 80 centigrade, short time 100 centigrade

Package Contents:
1* Thermowell
